Two Posts Mechanical 2 Floors double parking car lift

FOB Reference Price:Get Latest Price
US $1,890-2,580 / Units | 1 Unit/Units 1 unit = 2 parking spaces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Parking Lift
Height (mm):
3400 / customized
Width (mm):
2551 / customized
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Mutrade
Model Number:
1127 / 1123
Warranty:
10 Years
Product Name:
Two Posts Mechanical 2 Floors double parking car lift
Upper Floor Capacity:
2.7/ 2.3 tons
Certification:
CE / TUV / CCQS / ECM / MEA / ISO
Power unit:
2.2 / 3.0 kw
Power supply:
220V / 380V / Customized
Drive mode:
Hydraulic + Motor: stable and smooth working
Application:
Indoor parking lots, outdoor parking lots...
Operation Mode:
Key switch + buttons
Finishing treatment:
Powder coating
Color:
Customized
Supply Ability
Supply Ability:
2700 Unit/Units per Month Two Posts Mechanical 2 Floors double parking car lift

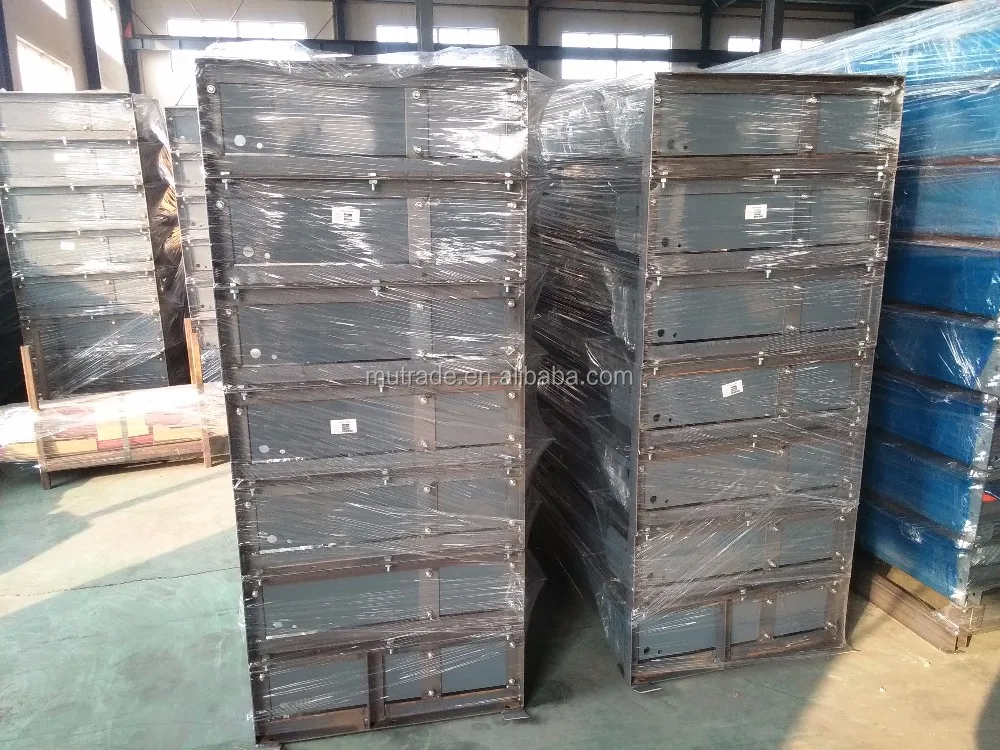

Packaging & Delivery
Packaging Details
Standard Export Packing (steel frame & plastic sheet to keep the products safe and stable during long shipping time):
1. Steel packing frame to fix equipment;
2. All structures are fixed on the steel packing frame by screws;
3. All electric wires and motor to be put into cartons;
4. Steel packing frame and carton (packages) all will be covered /twined by stretch film to prevent water /moisture /dust;
5. During the unloading, please use forklift (4 tons capacity) to unload the steel packing frame safely
Port
Qingdao
Lead Time :
Shipped in 35 days after payment
Video Description

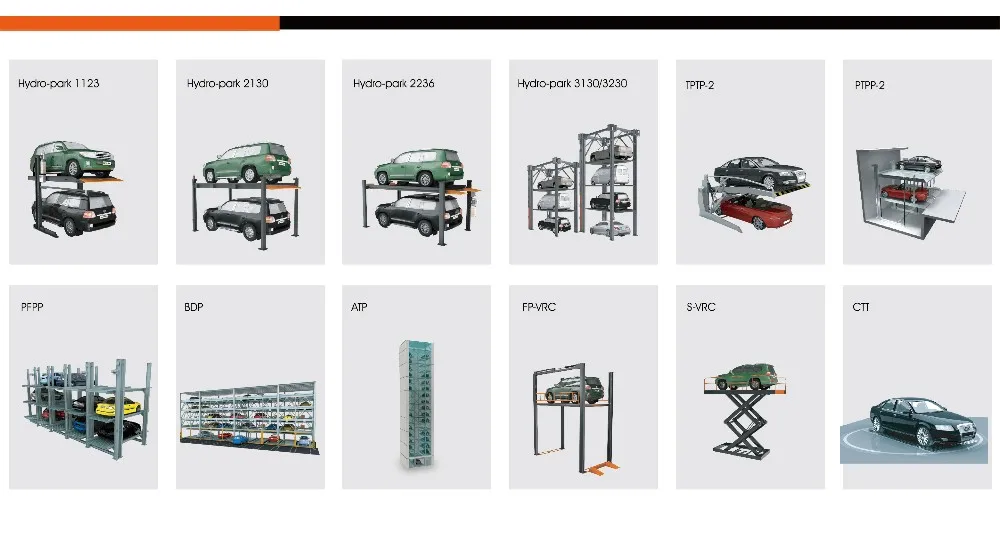

Hot Sale Products

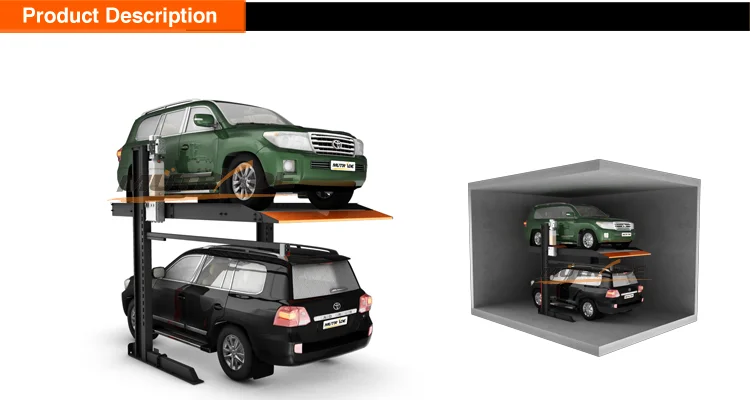

Product Description

2 Post Hydraulic Car Stacker Parking Lift for Garage and Storage

Hydro-Park series of products are developed to provide customers more reliable, stable and usable parking equipment. A lot of new designs and components are updated, to make sure the products can work for much longer time with less maintenance.

Hydro-Park 1127/1123 is the new Two Post Parking Lift. It’s a kind of valet parking equipment, suitable for both commercial and residential parking purposes. It moves only vertically, so the users have to clear the ground level to get the higher-level car down. It is hydraulic driven with chains. The equipment can be used for both sedan & small SUV..

Comparison

Safety Features

1) “All the way” 17 mechanical anti-falling locks at every 10cm
2) 24v electric lock release (no harm for operator)
3) Self-restore key switch will automatically shut-off if operator releases the key switch.
4) Photocell sensor available to check under car and avoid trespass.
5) Electric protection for power over load or under voltage.
6) Auto locking system for power cut as safety features.
7) Emergency stop button.
8) Pressure relief valve and pressure compensate flow control valve to tripe ensure safety.
9) Limited switch on the top of the post (when the platform goes to the appointed height, it will automatically stop to avoid wrong operation)
10) Double hydraulic seals to ensure the total quality of Hydraulic cylinder
11) Overload protection device for hydraulic power pack
12) Synchronization chain assures the lifting platform balance.

Product Specifications

Model
Hydro-Park 1127
Hydro-Park 1123
Parking Vehicles
2
2
Rated Capacity
2700kg
2300kg
Equipment Weight
1100kg
1000kg
Lifting Height
2100mm
2100mm
Clear Platform Width
2100mm
2100mm
Safety Lock
Dynamic mechanical lock
Dynamic mechanical lock
Lock Release
Electrical auto release
Electrical auto release
Operation
Key switch
Key switch
Power Pack
3Kw hydraulic power pump
3Kw hydraulic power pump
Power Supply Required
100-450V, 1P/3P, 50/60Hz
100-450V, 1P/3P, 50/60Hz
Operation Voltage
24V
24V
Elevating Time
<50s
<50s
Surface Finishing
Powder coating
Powder coating

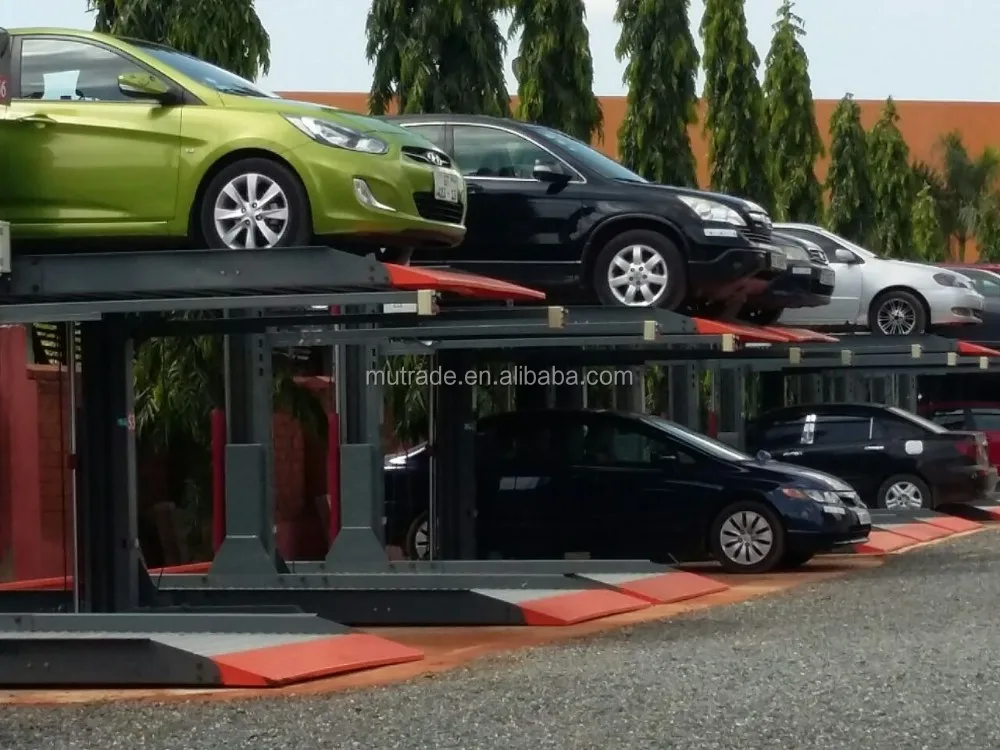

Project Reference

Hydro-Park 1123

Type: Two Post Parking Lift
Capacity: 2300kg
Drive Mode: Hydraulic
Location: Southeast Asia
Quantity: 42 cars
Application: Hotel

Hydro-Park 1127

Type: Two Post Parking Lift
Capacity: 2700kg
Drive Mode: Hydraulic
Location: Europe
Quantity: 16 cars
Application: Car storage

Hydro-Park 1127

Type: Two Post Parking Lift
Capacity: 2300kg
Drive Mode: Hydraulic
Location: East Asia
Quantity: 142 cars
Application: Commercial building

Hydro-Park 1123

Type: Two Post Parking Lift
Capacity: 2300kg
Drive Mode: Hydraulic
Location: South America
Quantity: 6 cars
Application: Car dealer

Hydro-Park 1127

Type: Two Post Parking Lift
Capacity: 2700kg
Drive Mode: Hydraulic
Location: North America
Quantity: 804 cars
Application: Car storage

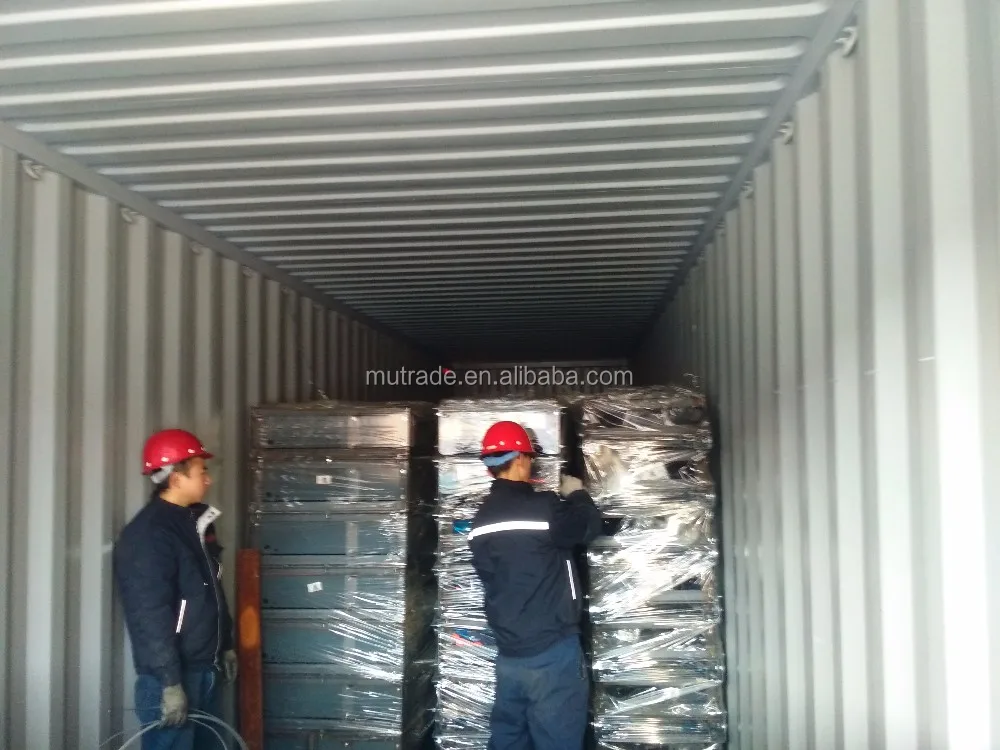

Packing & Delivery
Certifications
Our Company

Qingdao Mutrade Industrial Co.,Ltd is not only a manufacturer, but also a professional parking solution provider in China, established in 2001, cooperated with KAWASAKI at the beginning. In the recent 3 years, we have been installed about 25,000 spaces averagely every year. Our parking equipment is approved CE and ISO.
